The project

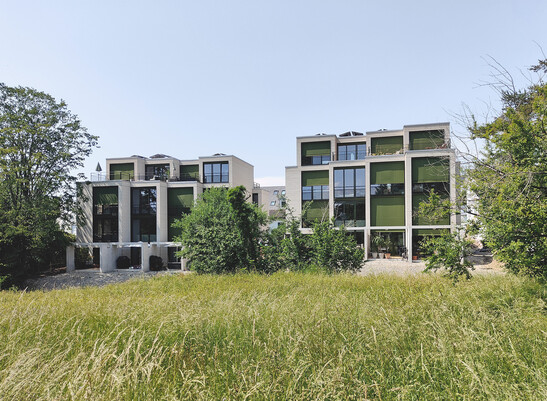

Eight terraced single-family houses were built on the outskirts of Zurich using a hybrid construction method. Four houses were combined into one building. The single-family houses consist of a basement, three full storeys above ground and an attic storey.
The construction method
The buildings were constructed using a hybrid construction method from the ceiling above the basement. The exterior walls and roof are designed in timber frame construction, the interior walls and ceilings in solid construction. The façade was also made of wood. A special feature is that the vertical façade is framed by horizontal bands.
Construction Data
- Exterior wall elements 900 m2
- Roof elements 110 m2
Services of Timbatec
- SIA Phase 31 Preliminary project
- SIA Phase 32 Construction project
- SIA Phase 41 Tendering and comparison of offers
- SIA Phase 51 Execution project
- SIA Phase 52 Execution
- SIA Phase 53 Commissioning
- Statics and construction
- Fire protection Quality assurance QSS1
- Cost estimate
Architect
Kissling & Roth Architecture
8004 Zurich
Timber construction engineer
Timbatec Holzbauingenieure (Schweiz) AG Zurich
8005 Zurich
Timber construction
Kunz AG
8305 Dietlikon/ZH
Photography
Kissling & Roth Architecture
8004 Zurich
