High-tech trusses for the «Nägelimoos», Kloten sports hall project
26.08.2024
Three elongated school buildings and a striking central building with a double gymnasium and attached head building together form the school ensemble of the «Nägelimoos project» in Kloten. Impressive spruce/beech trusses set architectural accents as a gymnasium ceiling construction. Timber construction of superlatives.

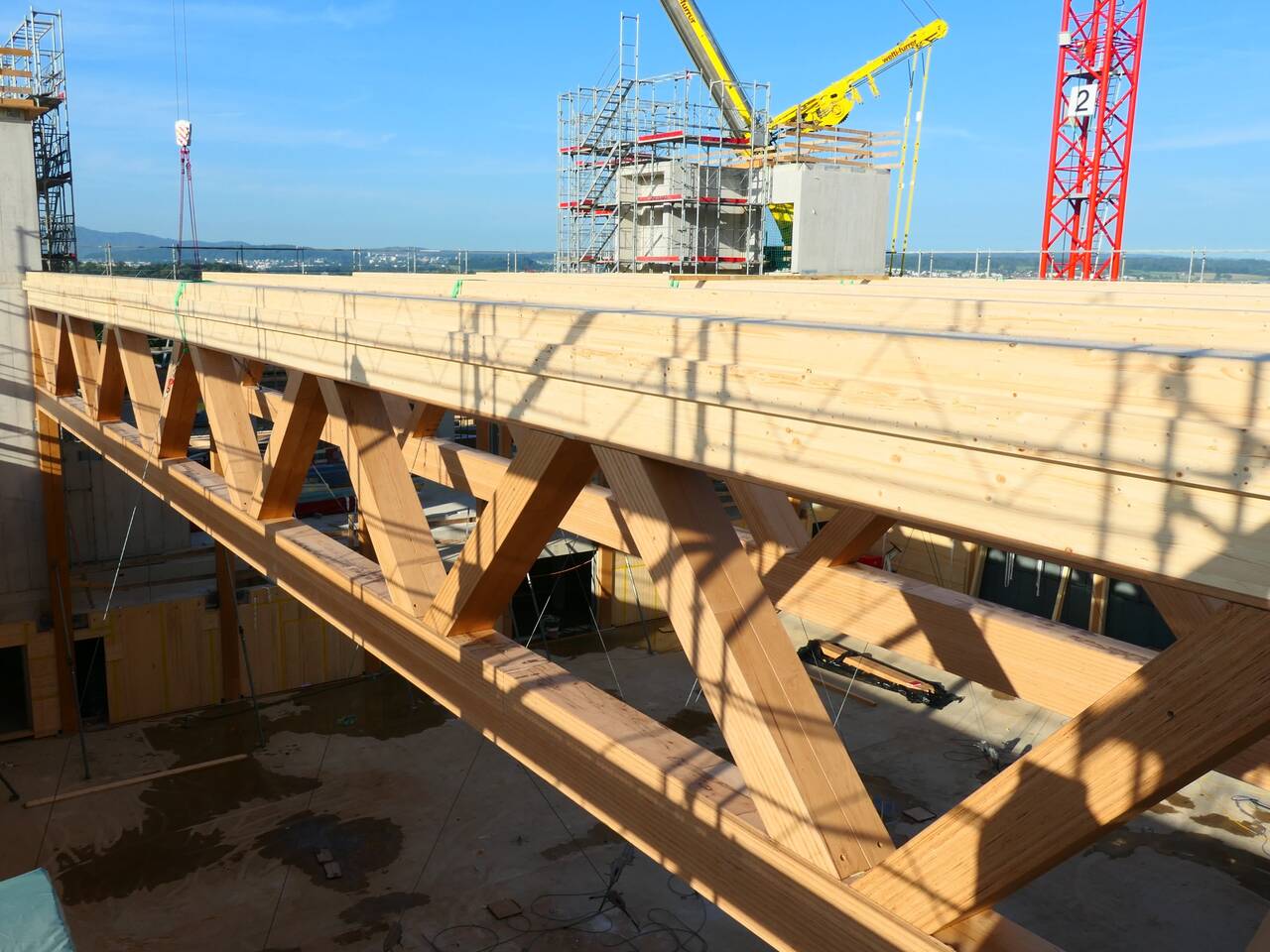

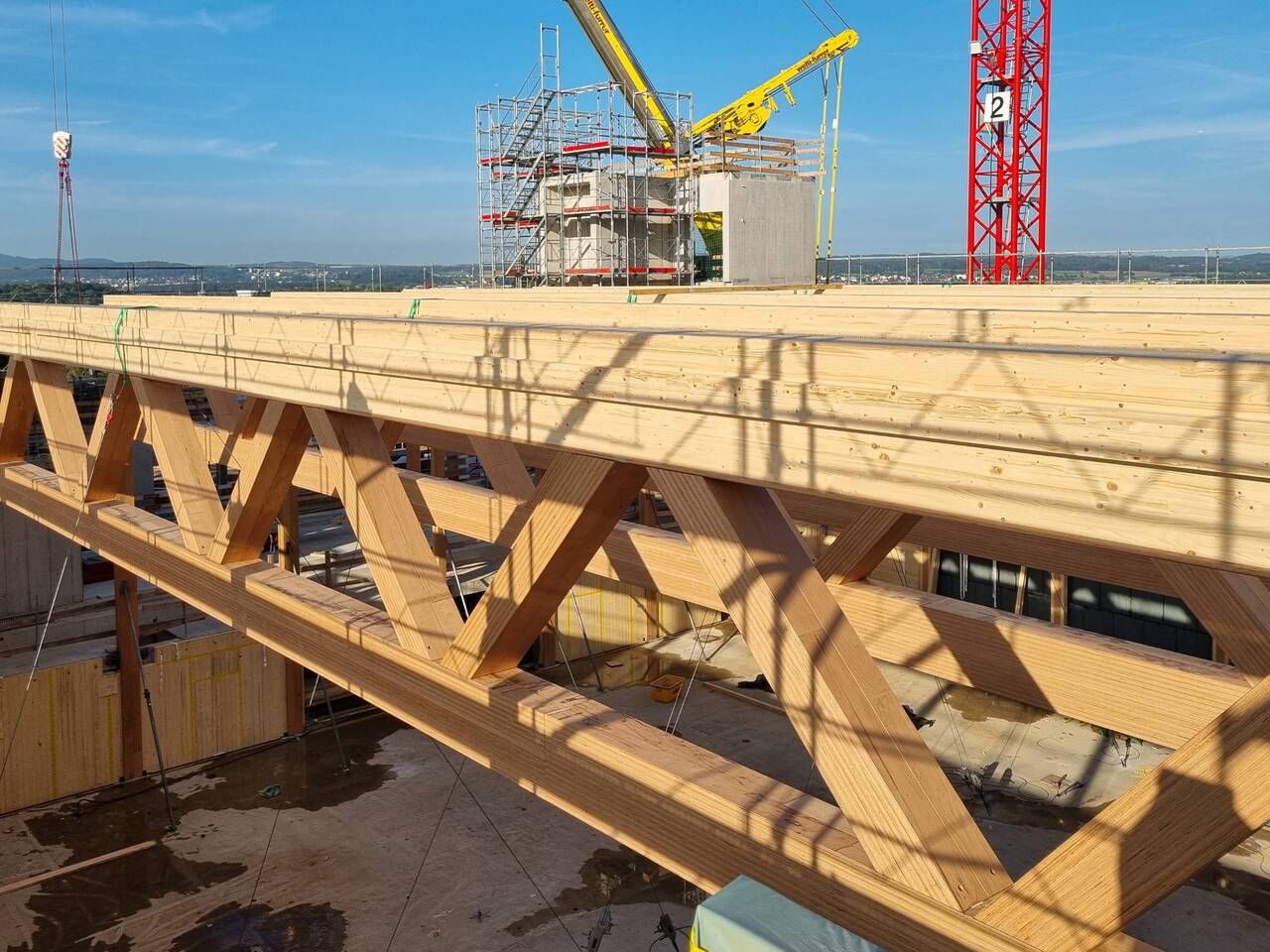

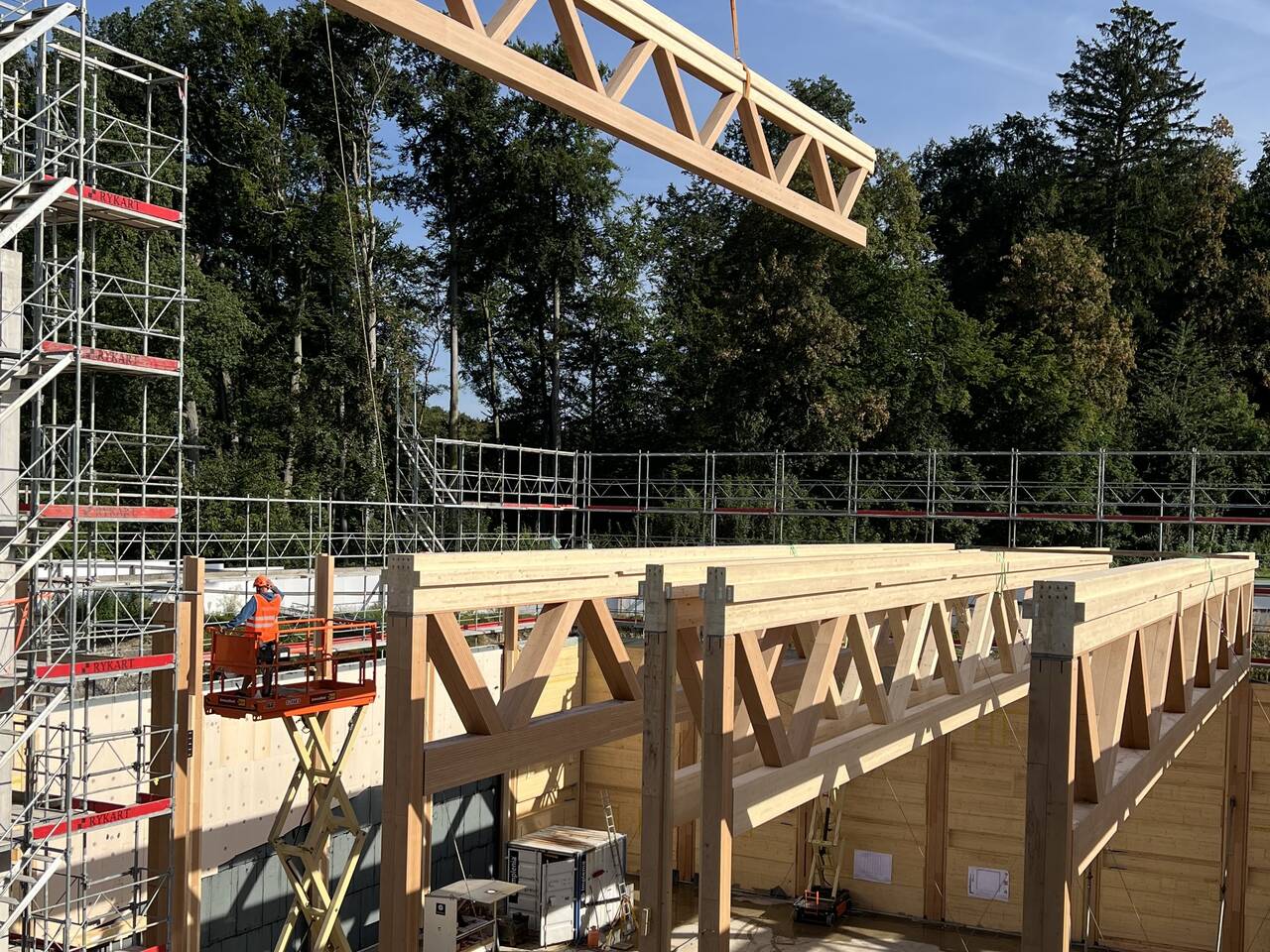

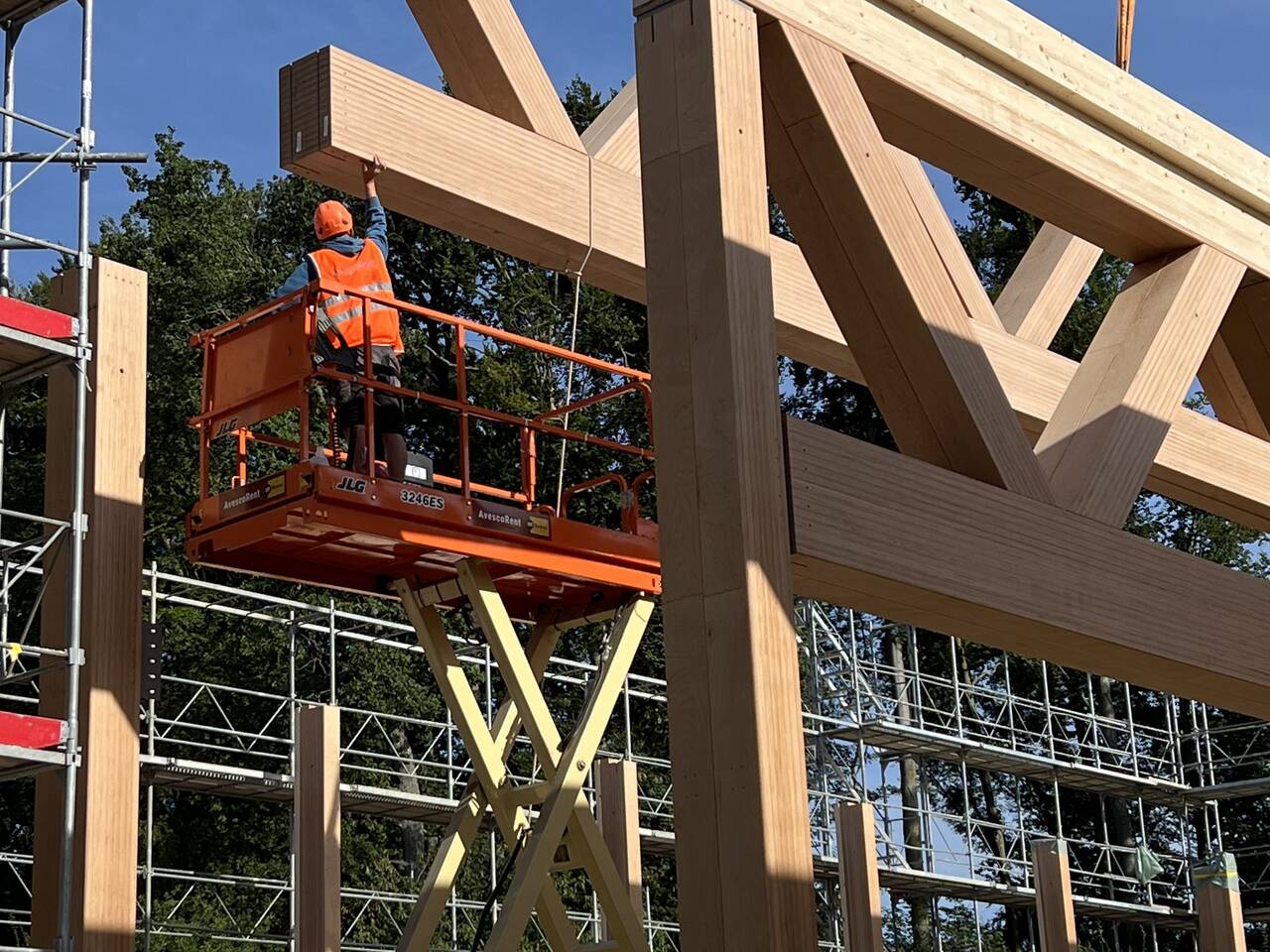

Trusses at the «Nägelimoos Project» sports hall, Kloten

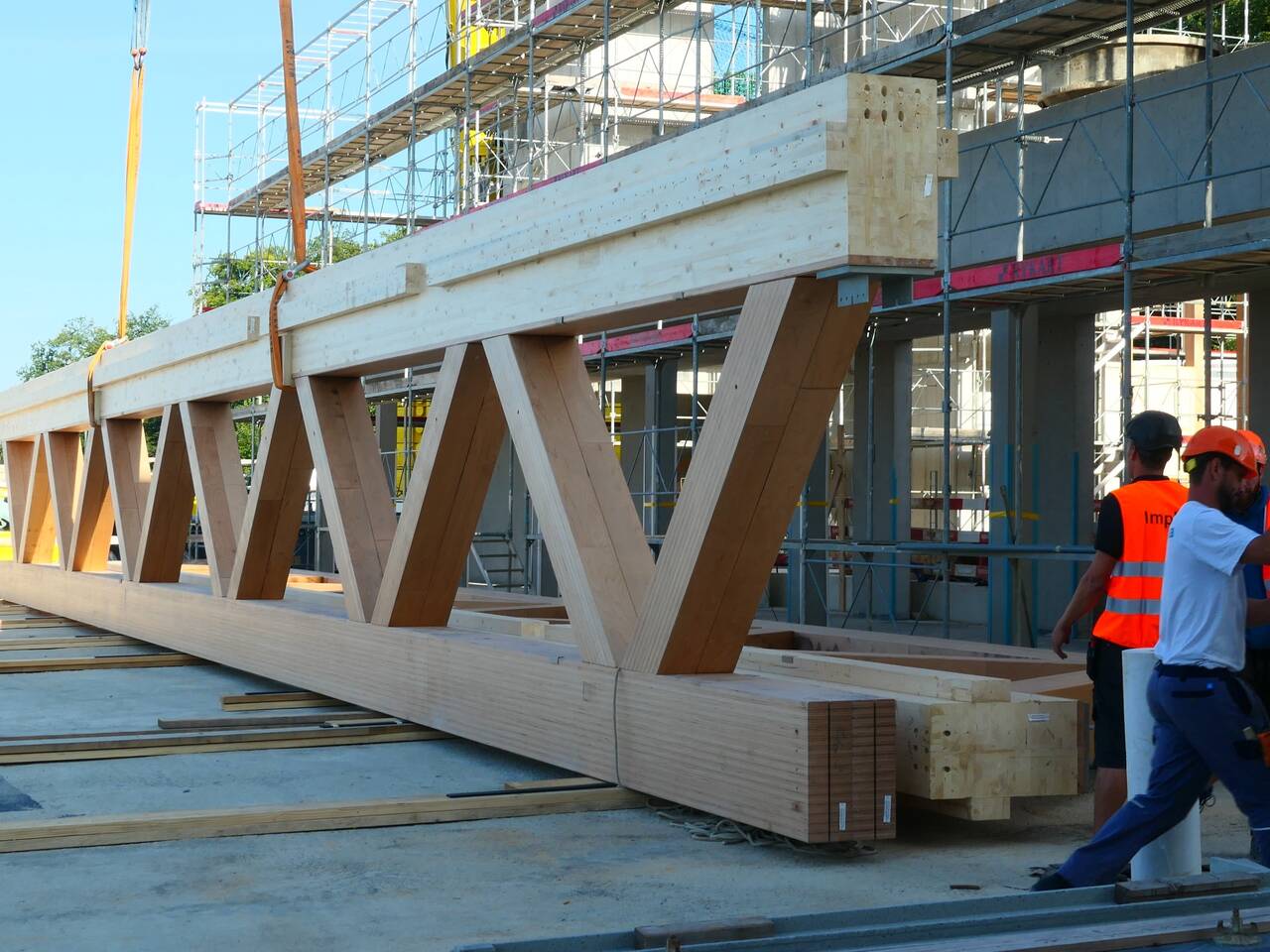

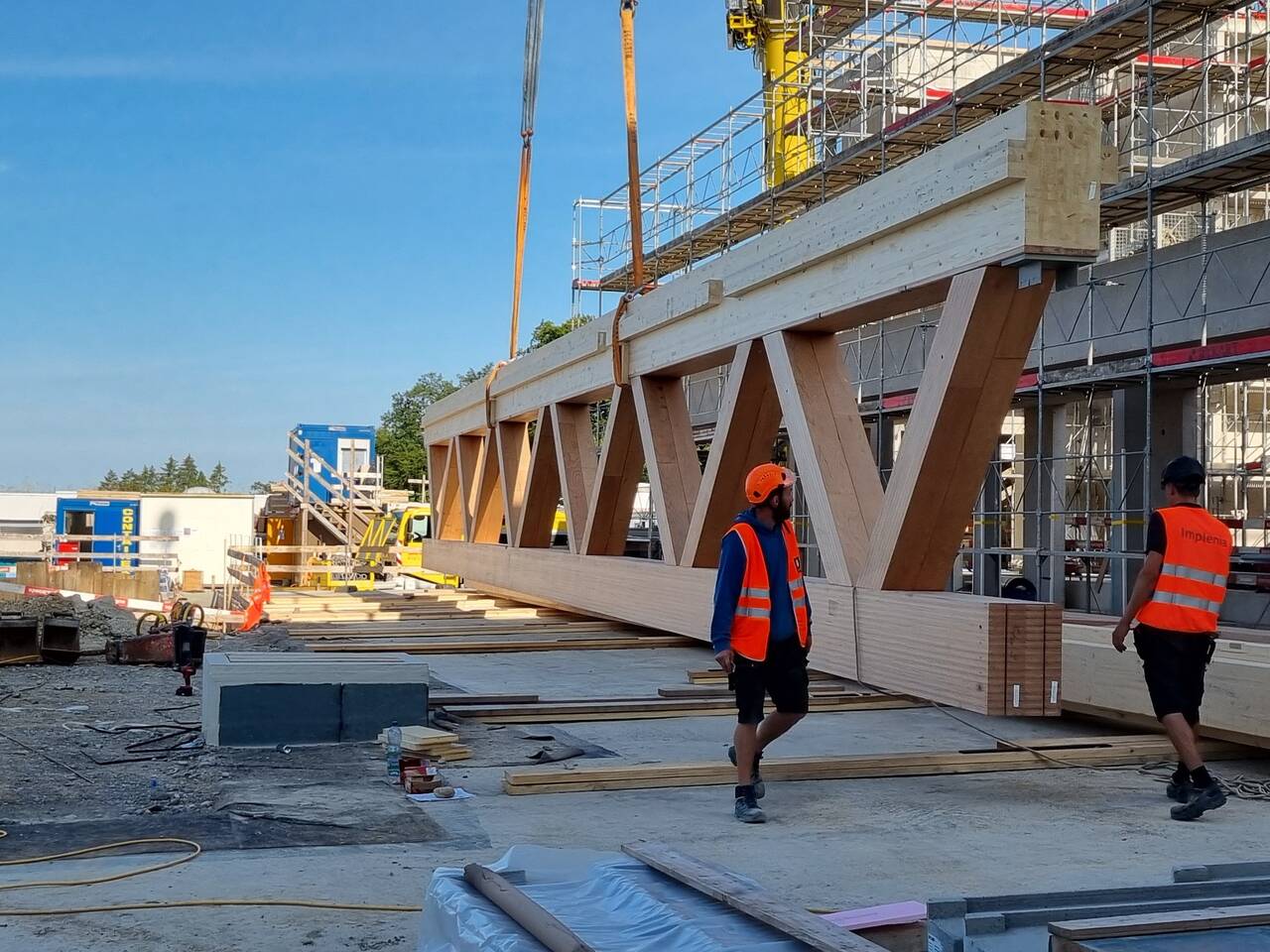

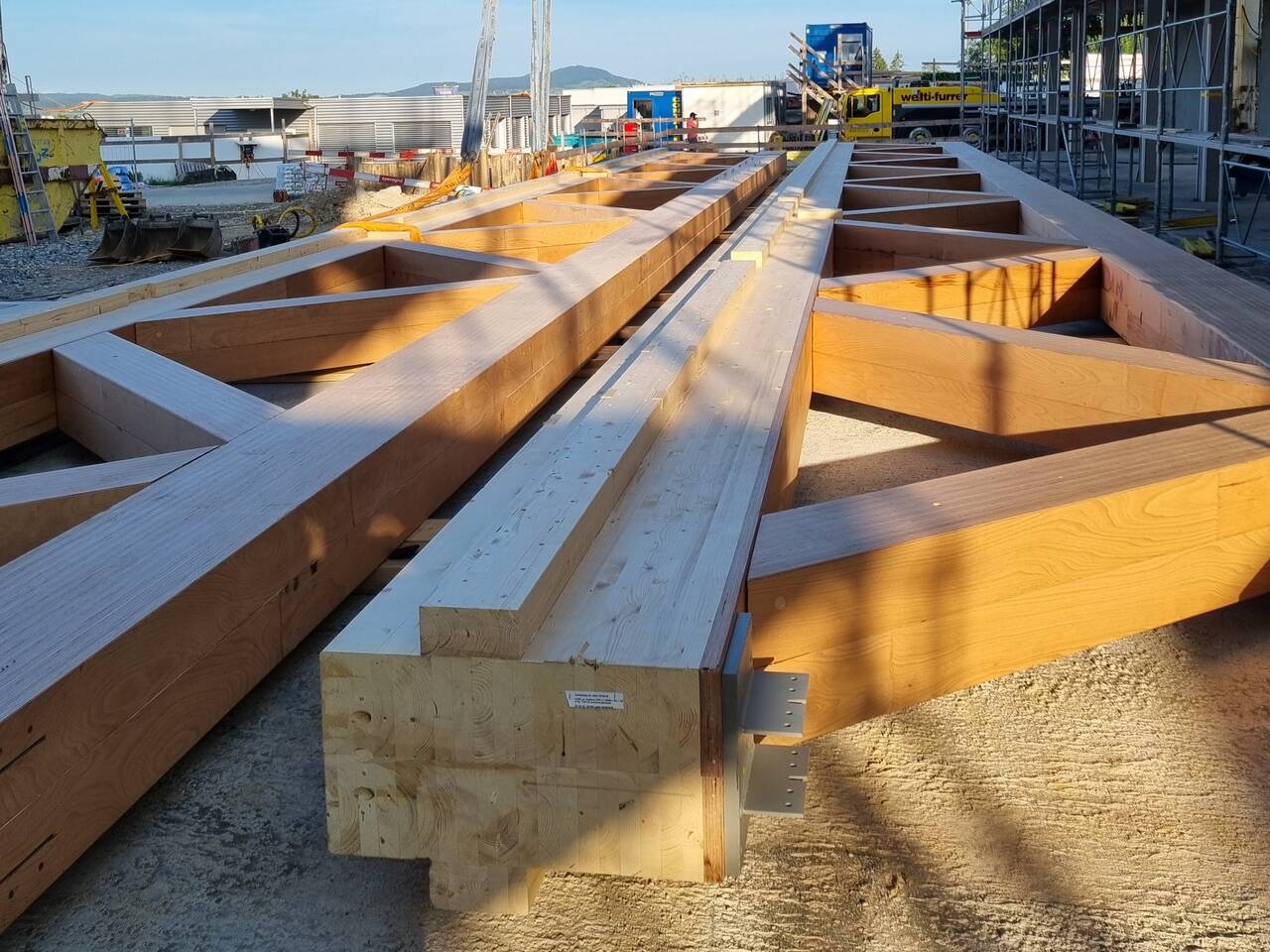

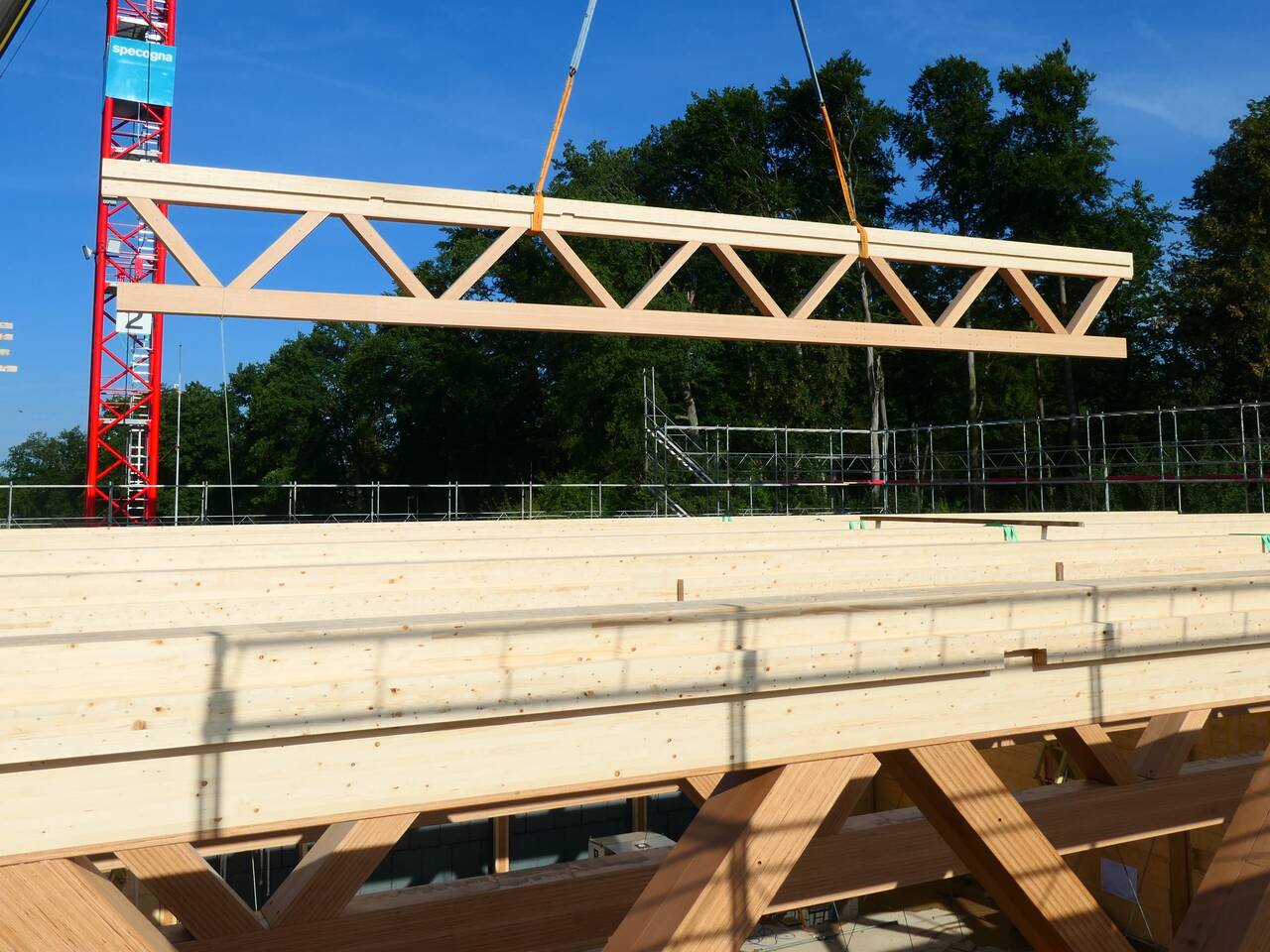

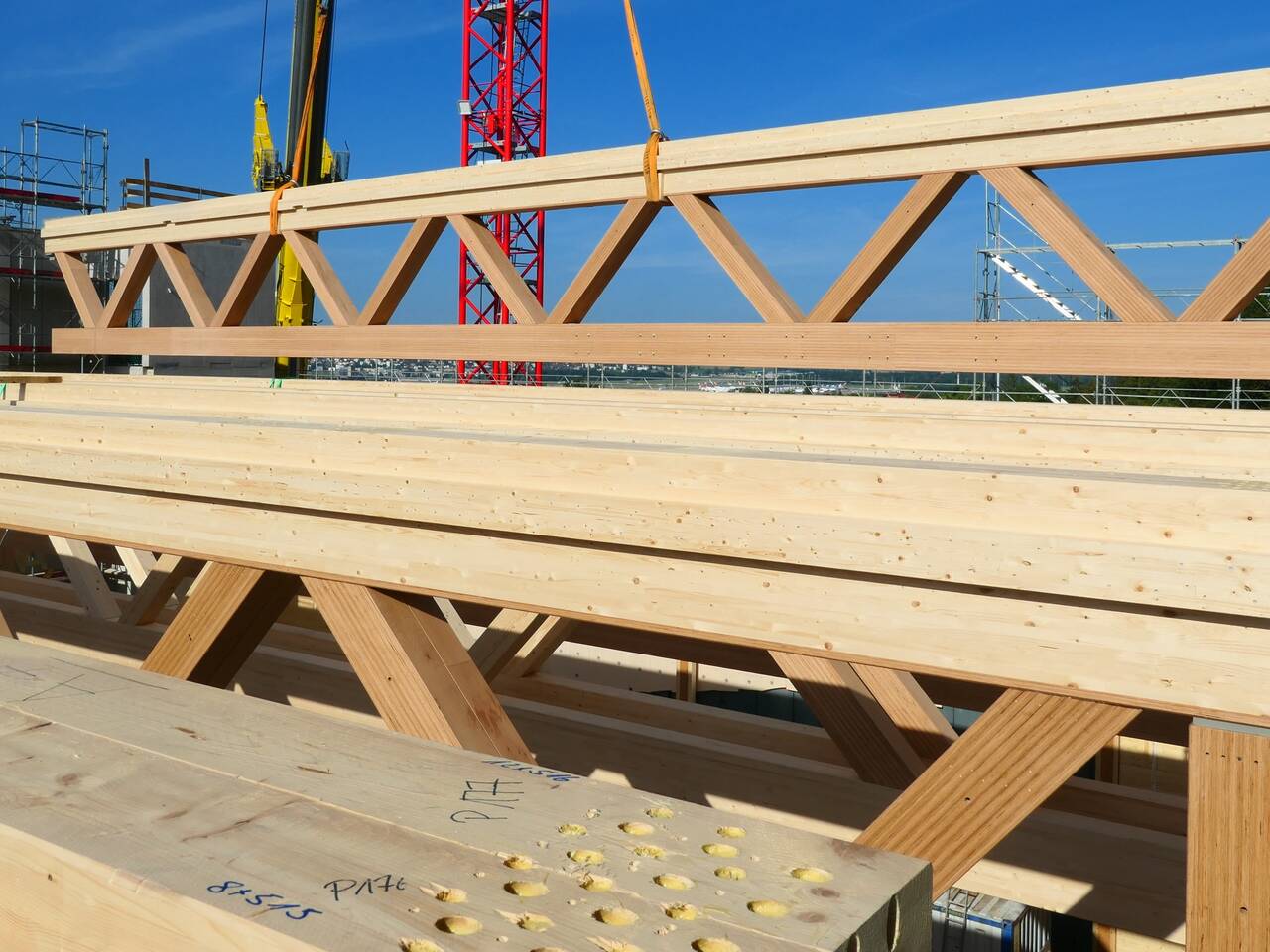

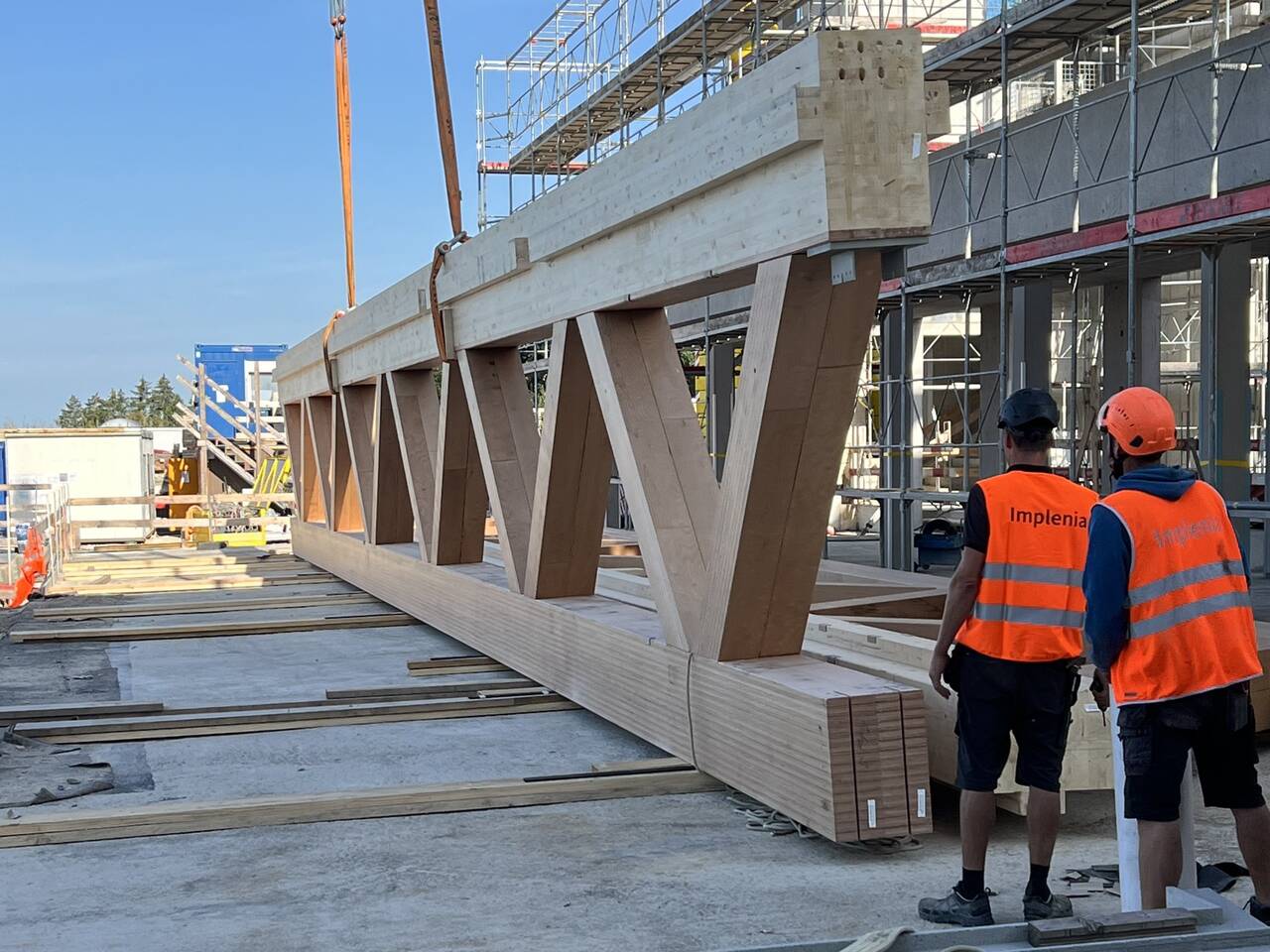

Implenia Schweiz AG Holzbau installed imposing spruce/beech trusses that span the new double gymnasium ceiling over a length of almost 30 m for the major school ensemble construction, conversion and repair project 👉«Projekt Nägelimoos» in Kloten/ZH. The prefabricated high-tech timber components are around 3.20 m high. Further timber elements will then be added on two storeys to form a multi-purpose room with a stage and additional classrooms with group rooms.
© Images / Visualizations
Architecture: Galli Rudolf Architekten AG ETH BSA, Zurich
Visualization: ATELIER BRUNECKY
Cooperative interaction between the specialist planning teams

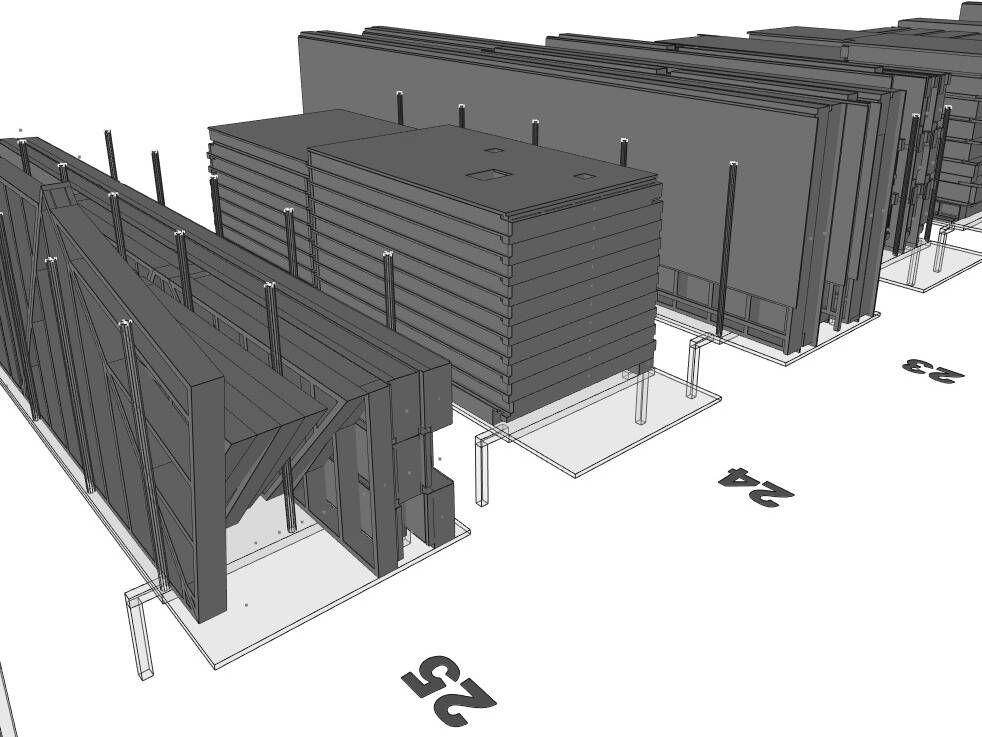

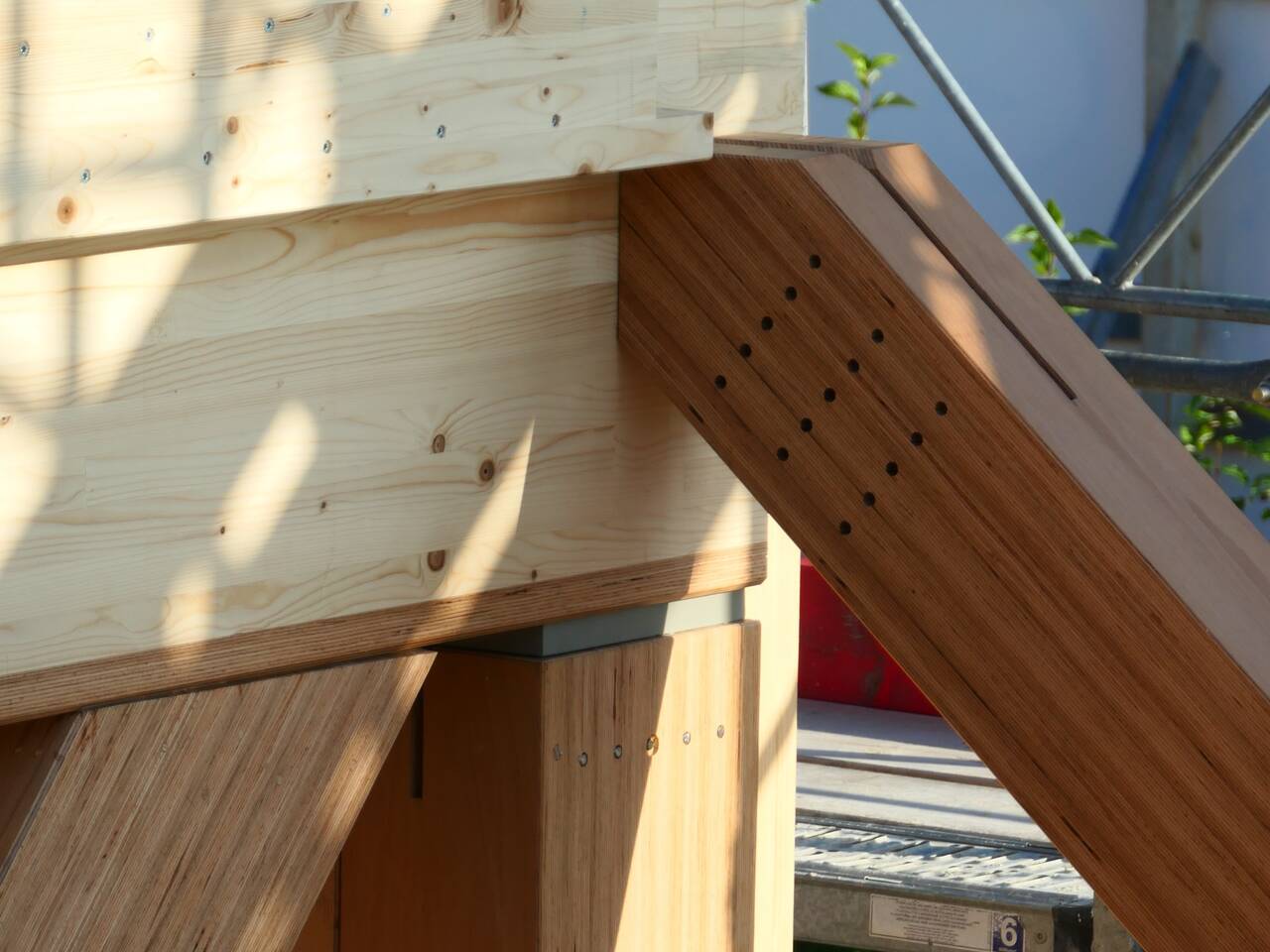

In close cooperation with the specialist planning teams of neue Holzbau AG, Lungern, Makiol Wiederkehr AG, Beinwil am See and Lignatur AG, Waldstatt, the work planning teams of Timbatec Holzbauingenieure Schweiz AG were commissioned with planning work in advance. This included expert planning of the structural components (including clarification and implementation of connection details and plausibility checks with regard to ease of assembly). In addition, smooth transportation logistics were ensured by designing and creating the loading plans for the flatbeds.

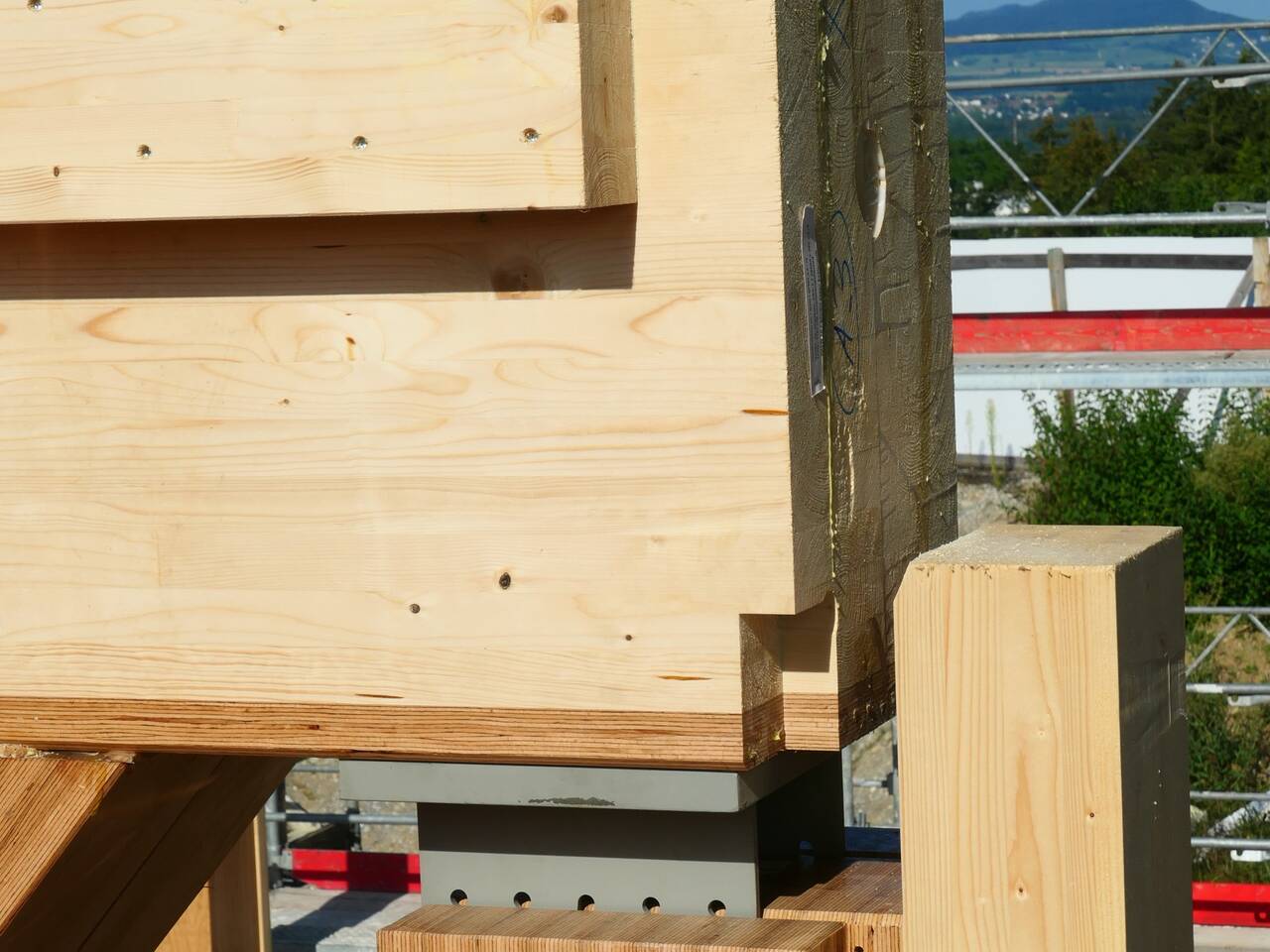

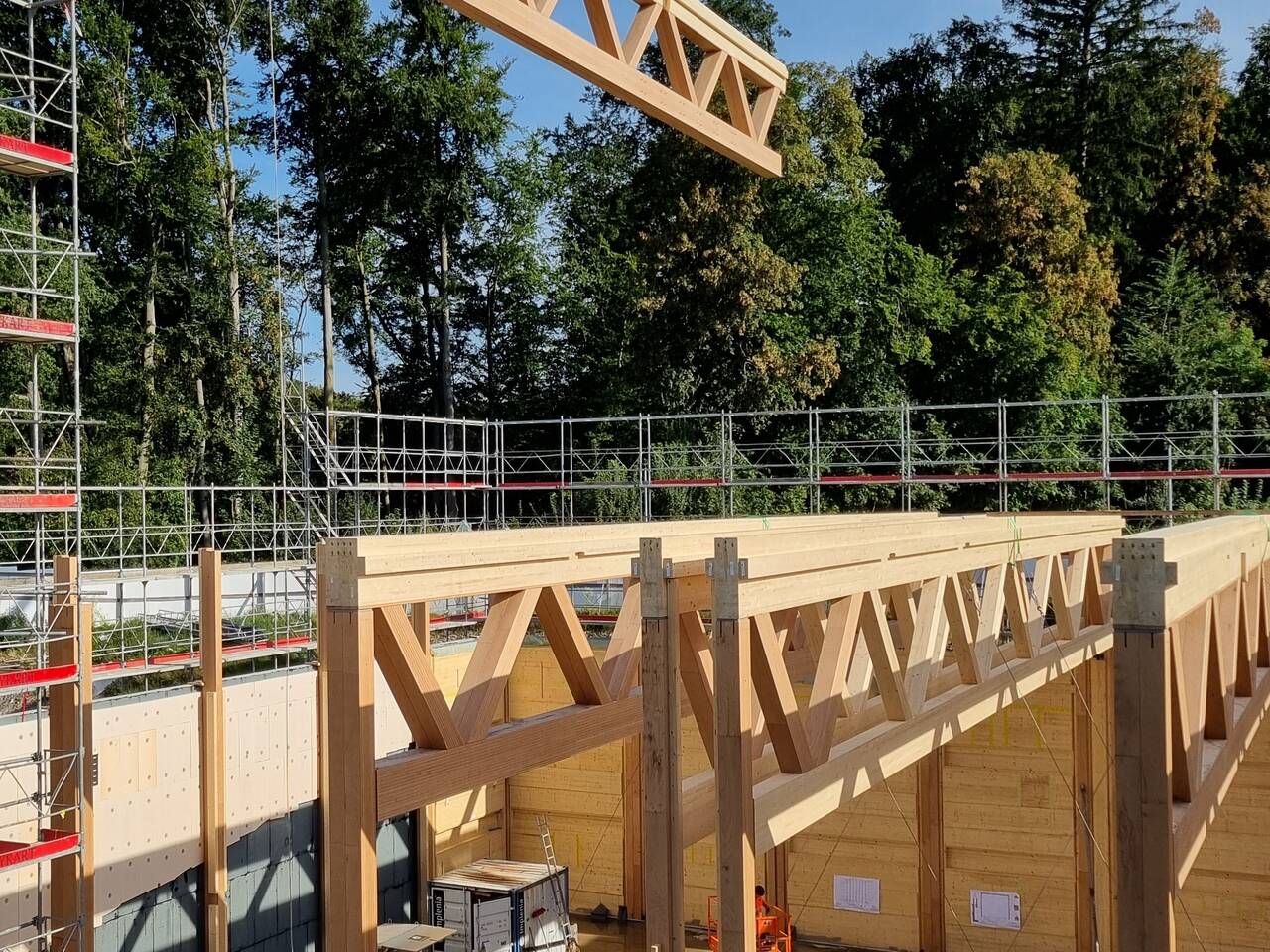

© Pictures Timbatec Holzbauingenieure Schweiz AG

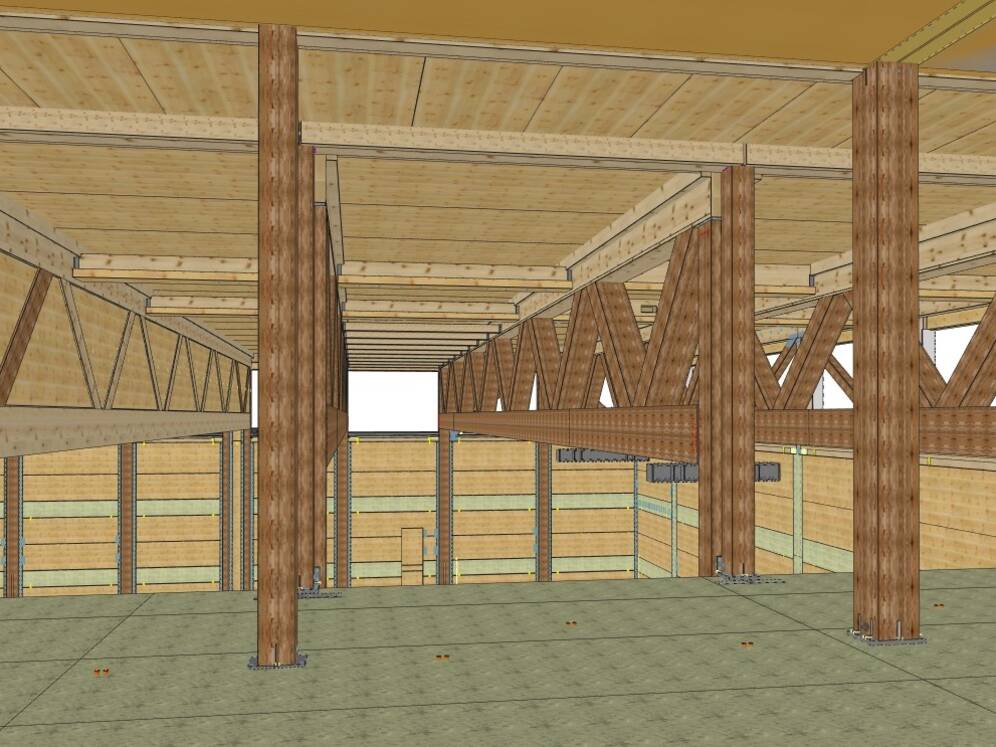

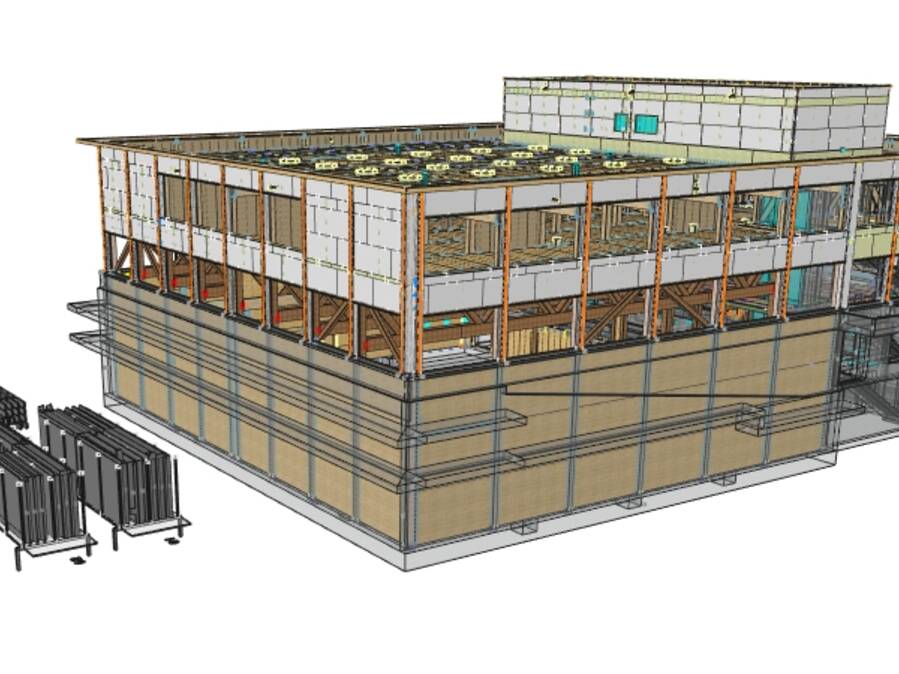

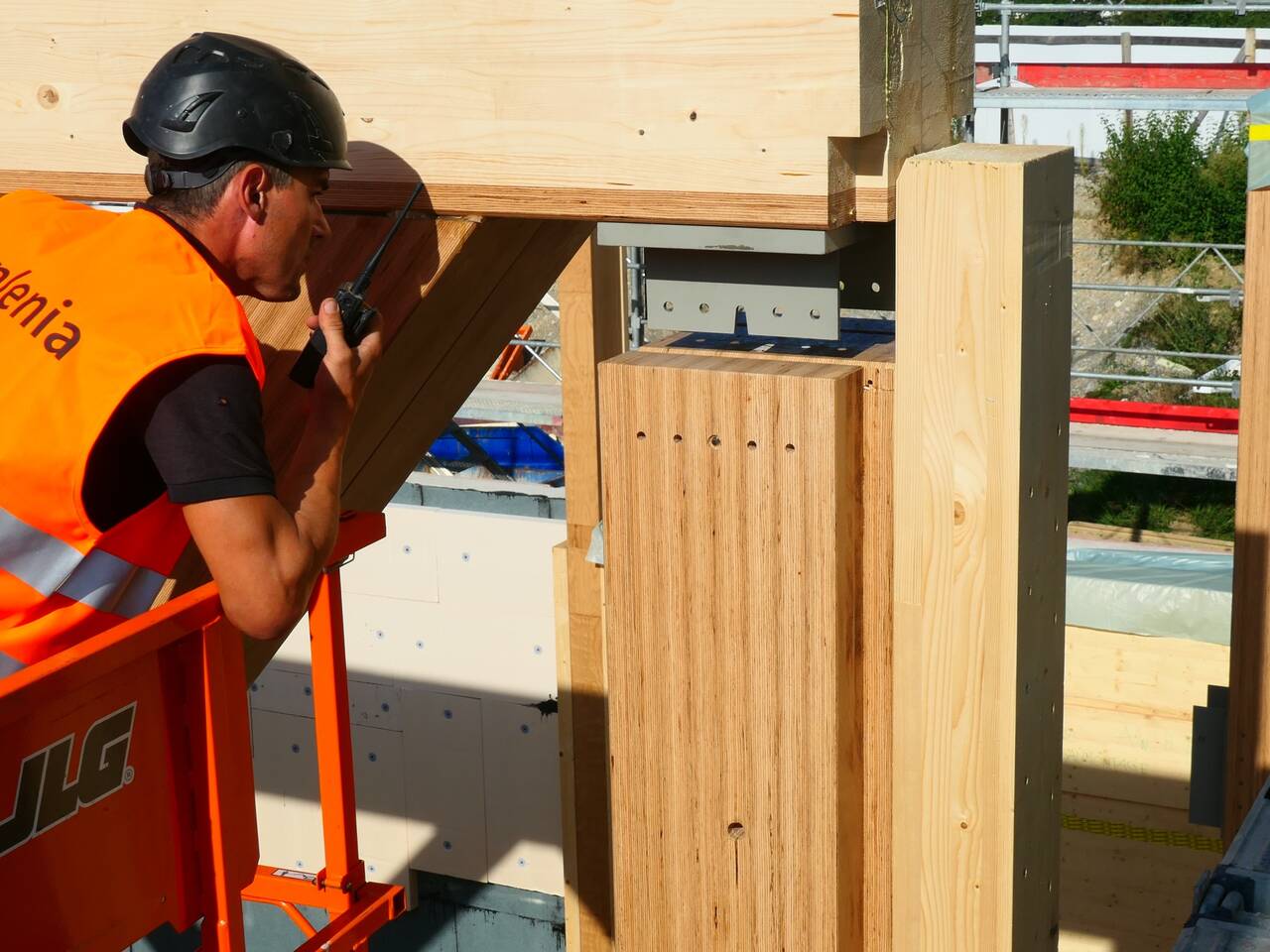

A big thank you goes to all the project partners involved and to the clients for their trust in us to implement these challenging tasks. It is always as exciting as it is impressive when the idea digitally planned in Cadwork is turned into built reality on the construction site. This is most successfully achieved cooperatively, hand in hand in close exchange.

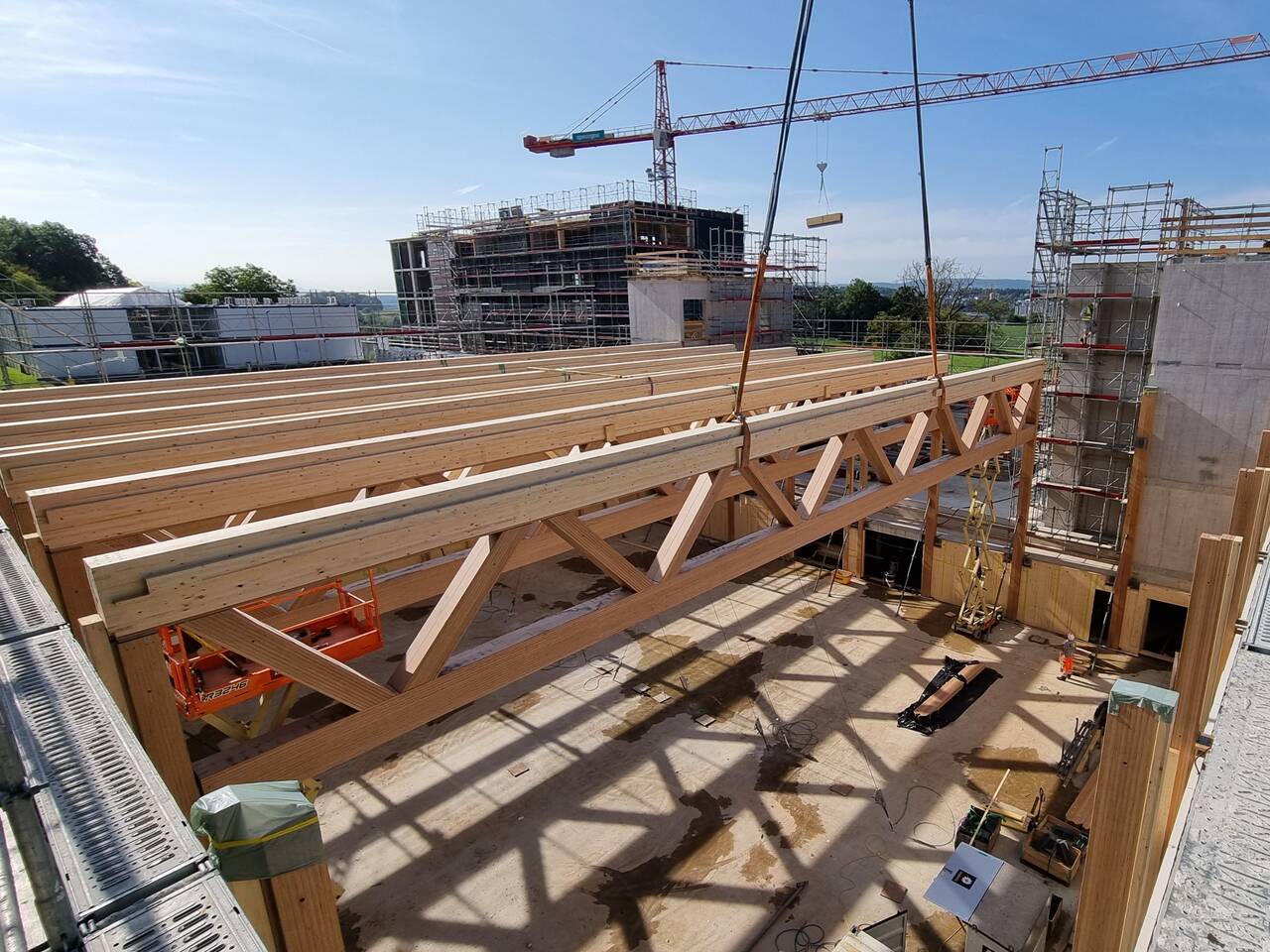

© Pictures Timbatec Holzbauingenieure Schweiz AG

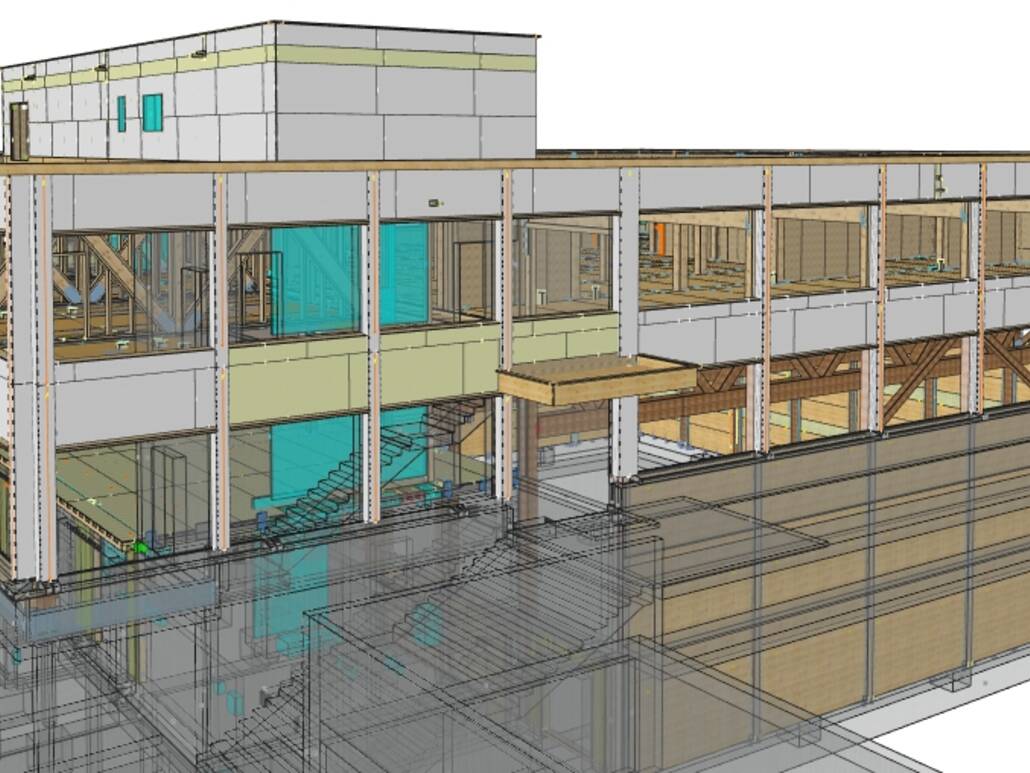

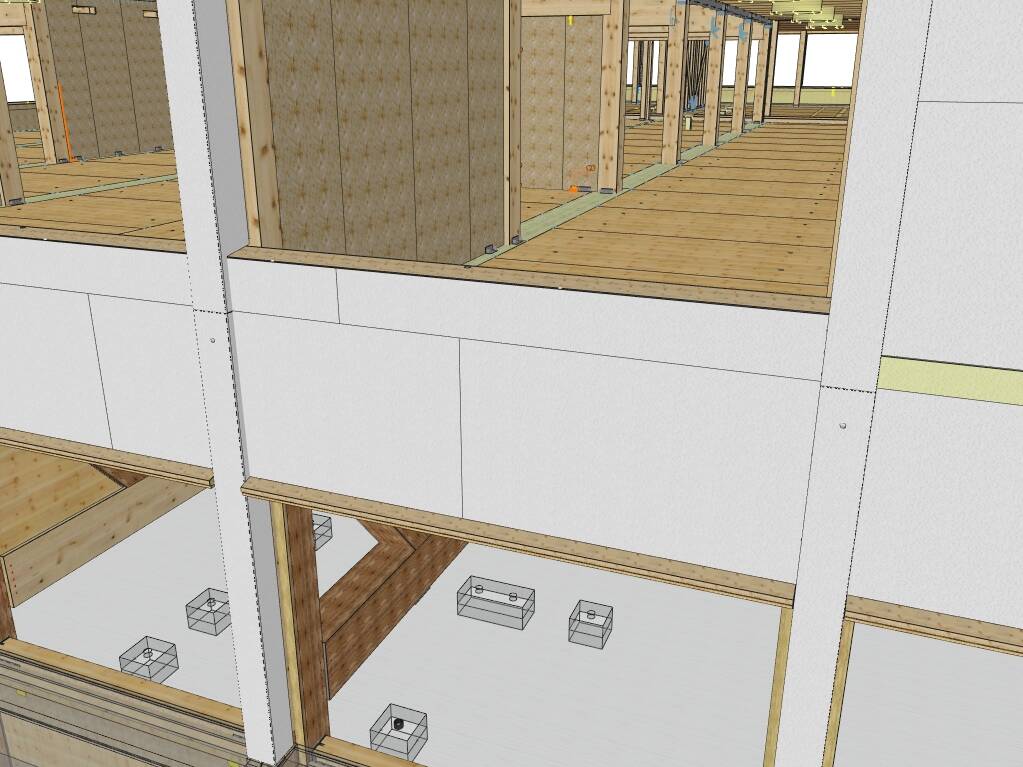

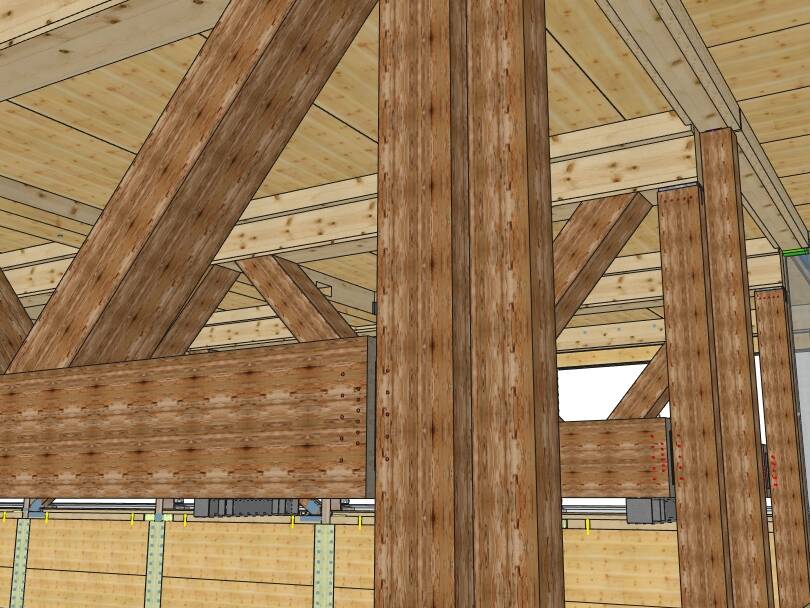

Cadwork | iFrame | Structure floors
Project participants and cooperations
| Field of activity | Company |
|---|---|
| Client | Stadt Kloten |
| Partner timber construction planning | neue Holzbau AG, Lungern |
| Makiol Wiederkehr AG, Beinwil am See | |
| Lignatur AG, Waldstatt | |
| Implementation of timber construction work | Implenia Schweiz AG, Holzbau, Rümlang |
| Construction site logistics | Timbatec Holzbauingenieure Schweiz AG |
| Architecture | Galli Rudolf Architekten AG ETH BSA, Zürich |
| Visualization | © ATELIER BRUNECKY |
